Brand - McMASTER-CARR
Item Number - 4229N16 McMASTER-CARR
Category - Miniature High Speed Threaded Track Roller (440C Stainless Steel Flat Rollers Without Seal)
Roller Diameter (mm) - 5
Roller Width (mm) - 3
Stud Diameter (mm) - 2.5
Stud Length (mm) - 5
Thread Size - M2.5
Thread Pitch (mm) - 0.45
Thread Length (mm) - 2.5
Shoulder Diameter (mm) - 4.8
Shoulder Length (mm) - 0.7
Maximum Speed (rpm) - 33600
Radial Static Load Capacity (lbs) - 60
Radial Dynamic Load Capacity (lbs) - 75
Maximum Temperature (°F) - 245°
Bearing Type - Needle Roller
Includes - Nut

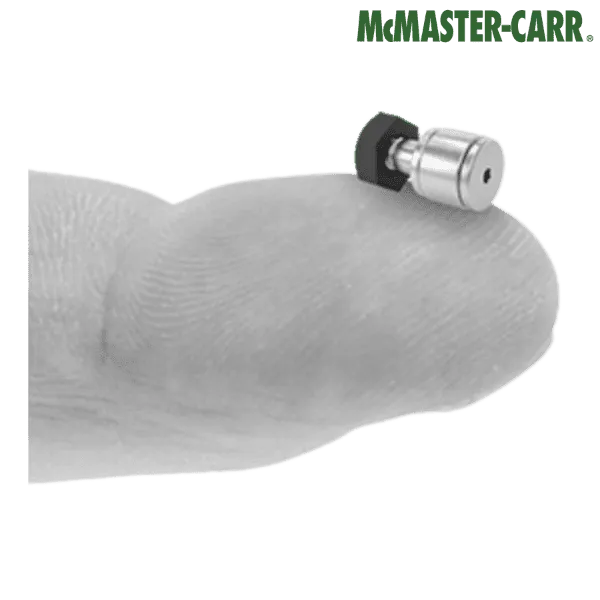

** Images are for representation purposes only
